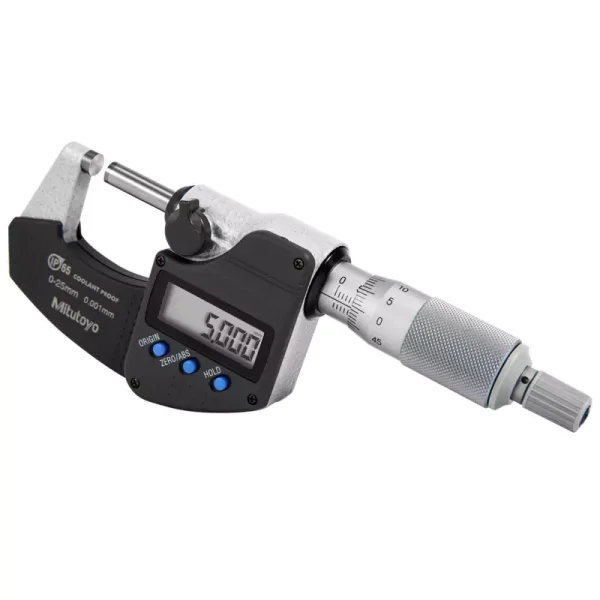

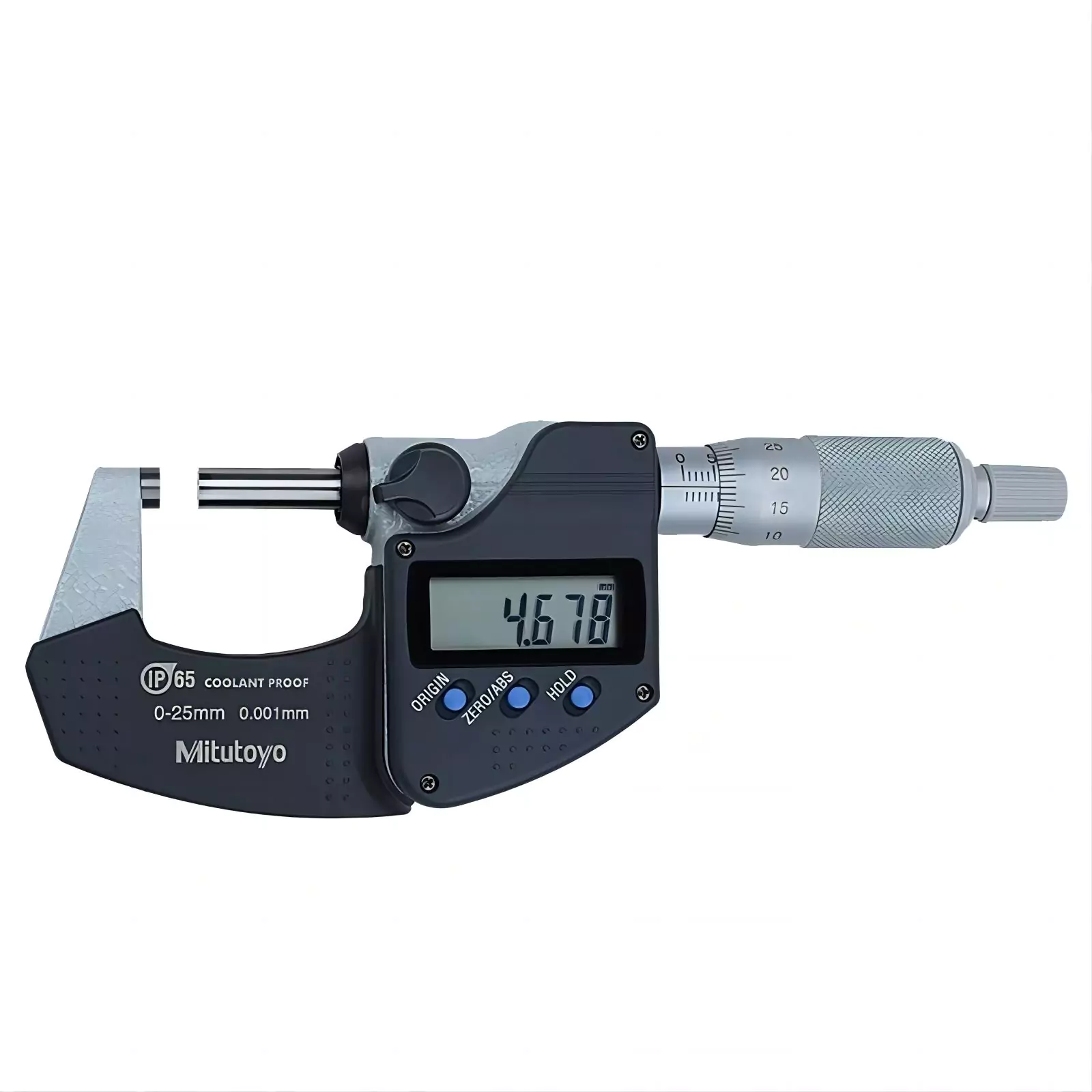

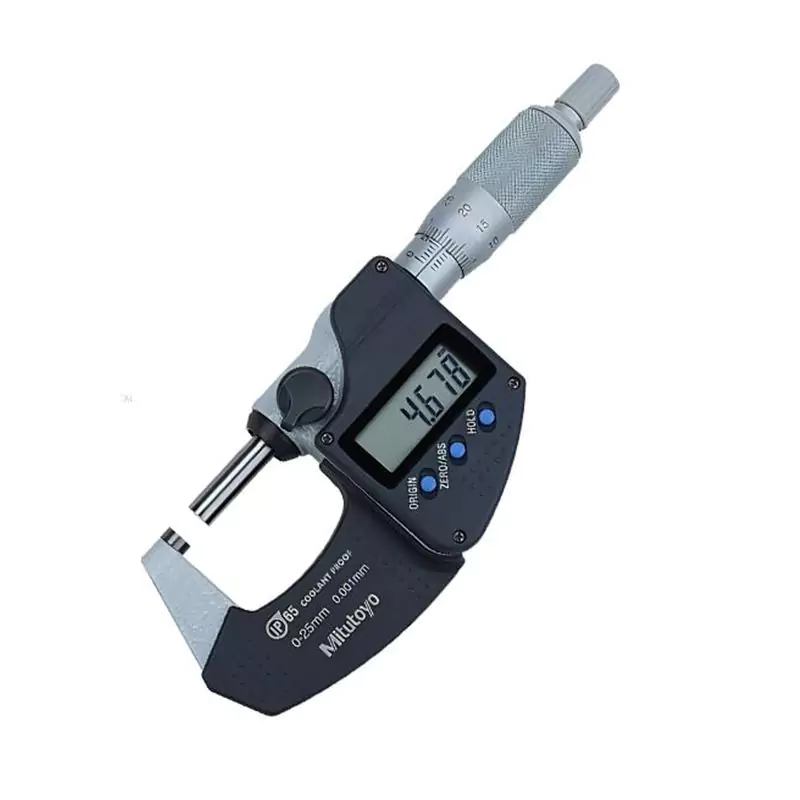

Mitutoyo High Precision Portable Digital Micrometer in Stock Japan Ratchet Origin 293-242-30 Measuring Range 0-100mm

1. The MDC-MX, MXT, PX, and PXT models achieve superior performance and precision.
2. With a battery life of approximately 2.4 years, these devices minimize the need for frequent battery replacements.
3. Featuring a heat insulation device and surface guard plate designed for handheld convenience, these models use an anti-skid raised shape. One-handed operation is enhanced by the ratchet casing.
4. All plastic components are made from oil-resistant materials. The MDC-MX and MXT models support the establishment of a statistical process control system and a measurement system.
5. Measurement data can be converted into keyboard signals and directly input into commercial spreadsheet software, offering a user-friendly interface and input tools.
6. Two types of constant force measurement devices are available: ratchet lock type and ratchet sleeve type. The measuring surface is carbide.

IP65 Protection Grade:

• Grade 6 (Dustproof): No dust ingress allowed.
• Grade 5 (Water Resistance): Direct water jets from any direction have no harmful effects.

General Specifications:

• Flatness: 0.3 μm
• Protection Grade: IP65 (IEC60529)
• Force: 5-10N (7-12N with ratchet sleeve)
• Power Supply: Button-type silver oxide battery SR44 (No. 938882) (standard attachment for initial operation inspection)
• Position Detection Mode: Electromagnetic induction rotary encoder
• Battery Life: Approximately 2.4 years under normal use (MDC-MX / MXT / PX / PXT)

Standard Accessories:

• 1 measuring rod (except for measuring range 25mm)
• 1 wrench (No. 301336)
